X-Line

High-performance CNC machine

Explore Model

Best of the best

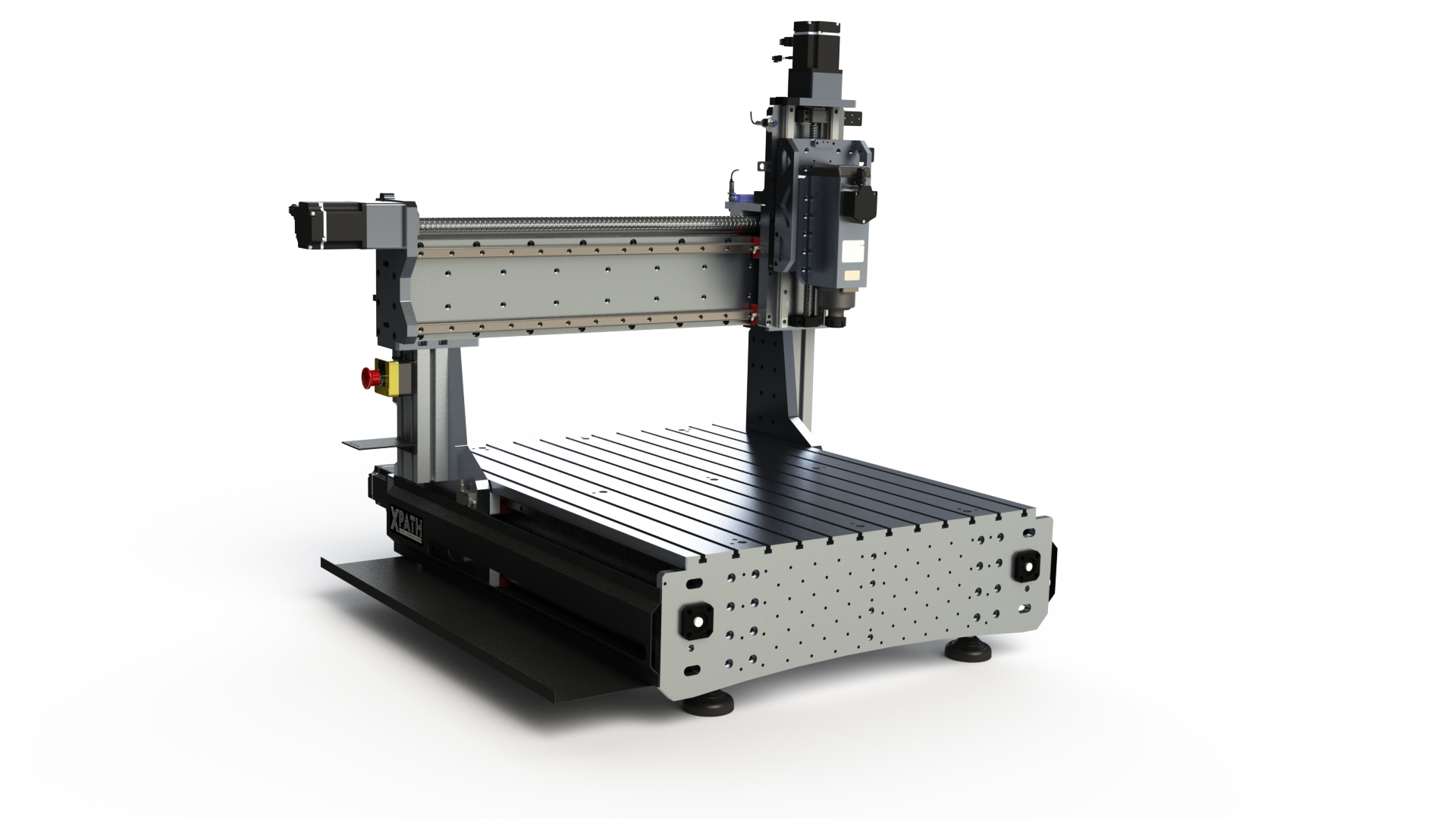

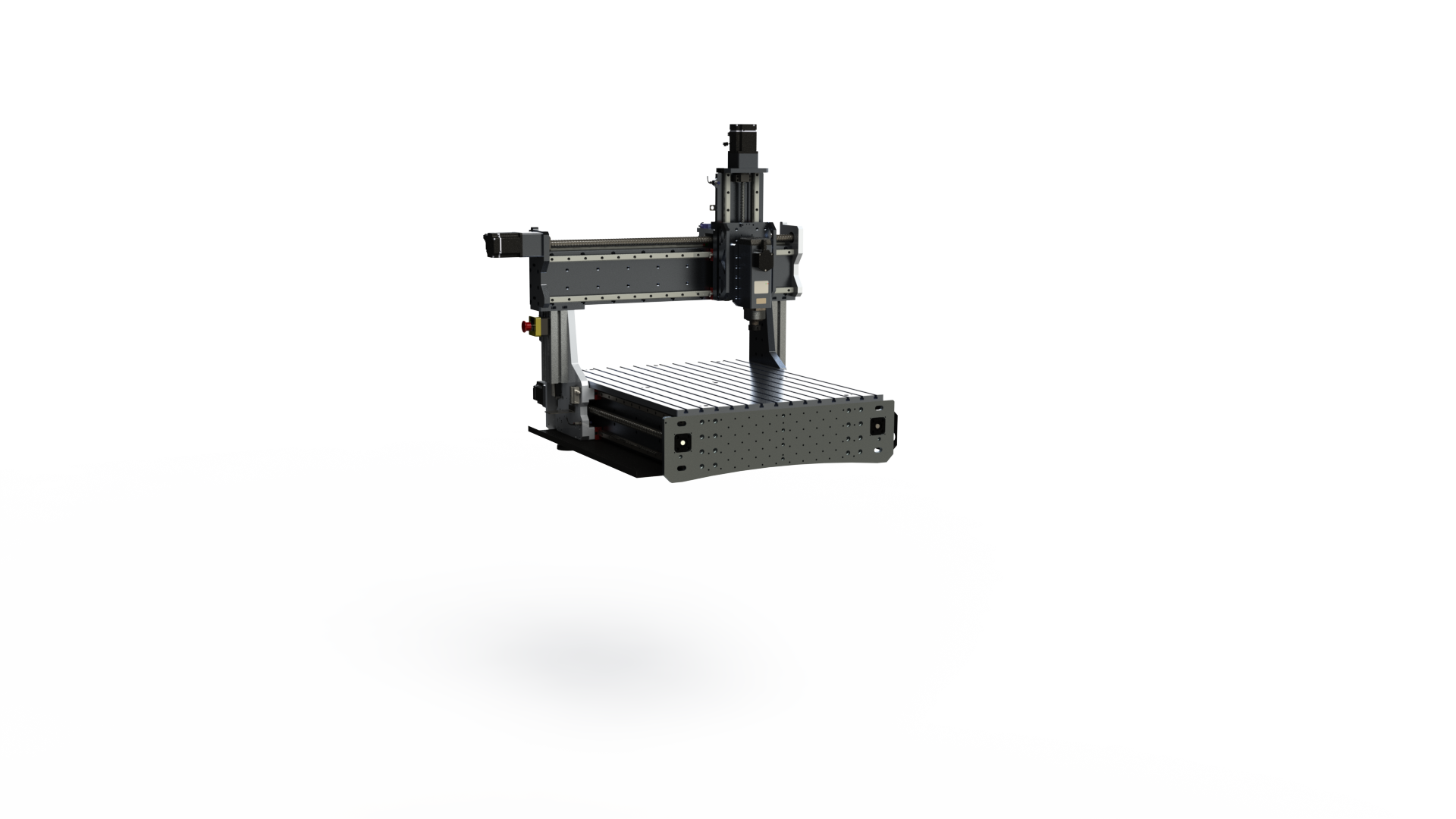

X-Line is a high-performance CNC machine. It is designed for precise processing of all soft materials such as aluminium, brass or plastic. It is suitable for companies and educational institutions that are involved in prototyping or small-scale production. The added value of the machine is also the specially designed X-axis, which is not made from an extruded profile like most CNC machines of this class but is made of aluminum plates, which allows for even more rigidity and precision. The model X-Line also comes with HIWIN linear guides as standard. On each guide, there are two pre-tensioned linear carriages, which contribute to maximum precision and minimal possible vibrations. The configurator also allows you to choose various additional equipment such as milled ball-screw spindle, a stand, a safety enclosure, a vacuum table, and other useful accessories.

Electrical cabinet

The electrical cabinet includes all electronics with JMC AC Servo 750W motors, AXBB-E controller with UCCNC licensed software, sensors for automatic squaring and limit switches.


We recommend that you choose a Plug&Play electrical cabinet in addition to the machine, otherwise we will not be able to advise or assist you with the AXBB-E and its operation.


Included in electrical cabinet:
  • Industrial steel enclosure
  • All shielded cables
  • 1pcs 5M ethernet cable for connection with your PC
  • AXBB-E motion controller
  • 4pcs JMC AC Servo 750W motors with drivers
  • UCCNC software program with licence key
  • 48V 1500W Power supply
  • 5V 60W Power supply
  • 24V 75W Power supply
  • Emi filter
  • Main switch
  • GX connectors for all cables
  • 5 x Mechanical limit switches for all axis
  • 4 x Inductive sensor reference switches for all axis:
    • 1x X-axis
    • 1x Z-axis
    • 2x Y-axis (Auto Squaring)
X Line electrical caibnet
Your configuration X-Line



All prices are in EURO and exclude VAT


Download Comparison PDF

For any further questions regarding the model, specifications or dimensions of the machine, please contact us and we will help you find the right solution.

Specifications

Work area(travel)

X: 740 mm
Y: 680 mm
Z: 275 mm

Outer dimensions

Lenght: 1200 mm
Width: 1200 mm
Height: 1100 mm

Clamping area

X: 730 mm
Y: 960 mm

Clearance below X axis

260 mm (without table)

Cutting Speed

12500 mm/min AC Servo 750W

Accuracy

+/- 0.01 mm

Repeatability

+/- 0.01 mm

Resolution: X/Y/Z

+/- 0.001 mm

What's included

  • Completely assembled CNC machine
  • Electrical cabinet
  • Heavy duty and rigid construction
  • Fast and precise Ball-screw TBI motion on all axis
  • 3 x linear rails HIWIN 20mm for X-Axis with 6pcs linear blocks
  • 2 x linear rail HIWIN 20mm on each side for Y-Axis with 8pcs linear block
  • 2 x linear rail HIWIN 20mm on Z-axis with 4pcs linear blocks
  • 2 x Ball-screw motion 20x10mm on Y-axis
  • 1 x Ball-screw motion 20x10mm on X-axis
  • 1 x Ball-screw motion 16x5mm on Z-axis
  • Base frame assembly with HD 180x90 ALU profiles
  • USB key with all documentation and manual
